Track Sizes

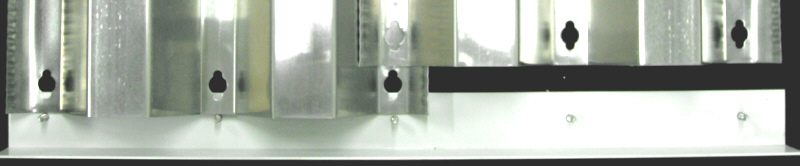

The Keyholes on the panels are 6" on center and the distance from the first hole to the last is 12"  An extra 1.5" is added to the starting and finish screw.  To determine the track length we take the number of panels time 12" and add 3".  The above picture shows a 2 panel track.   A 2 panel track is cut at 27" (2 panels x 12" plus an extra 3").  If you have panels that have holes every 12.5", the our 2" x 2" studded-angle will not work with your panels.  The F-tracks will work but will will have to cut them to the correct size.

Tracks cut to size Number of Panels Size
1 15"
2 27"
3 39"
4 51"
5 63"
6 75"
7 87"
8 99"
9 111"
10 123"
11 135"
12 147"
13 159"
14 171"
15 183"
16 195"
17 207"
18 219"
19 231"
20 243"

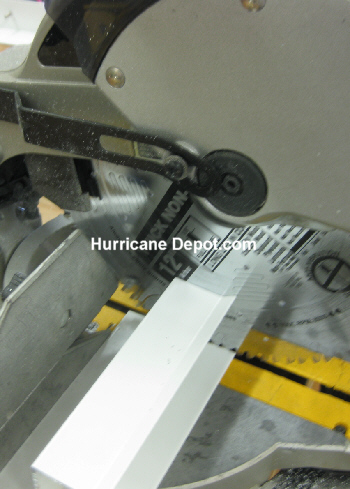

For cutting the aluminum tracks we use a 12" chop saw with a Thick Stock Nonferrous Metal Saw Blade 86 TCG +(Triple Chip Grind) tooth,7° hook, 1/8" kerf, 1" arbor). - manufactured by Freud.  This heavy-duty, non-ferrous metal cutting blade produces an excellent finish.  These blades have a custom designed gullets to minimize chip build-up and specially formulated carbide for long life.

 -
